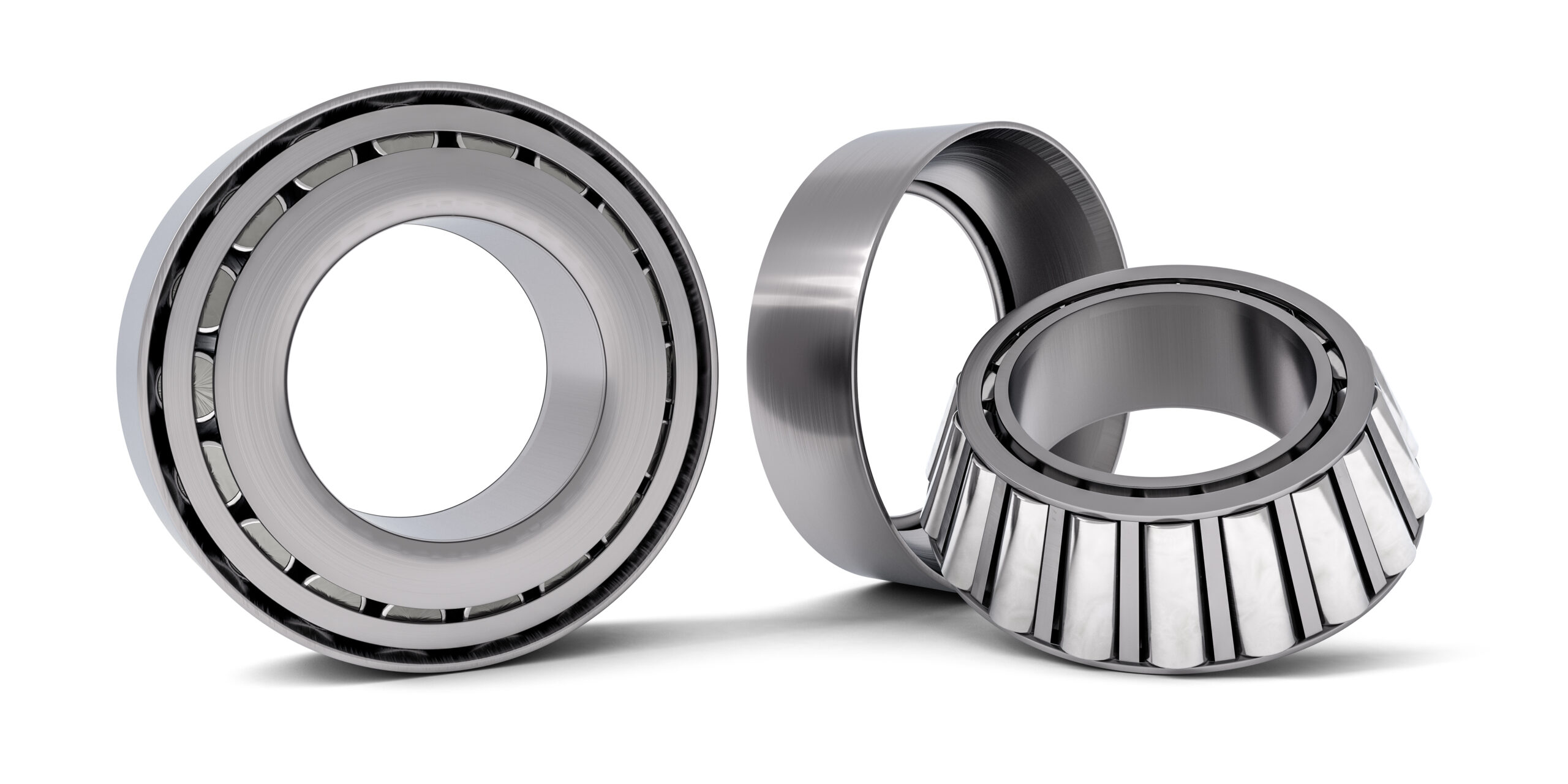

Tapered Roller Bearings
Tapered roller bearings are designed to support high radial and axial loads by utilizing tapered rolling elements (rollers) that are shaped like truncated cones. They are capable of handling both radial and thrust (axial) loads in one direction.
- Contact Angle Range: Tapered roller bearings typically have contact angles ranging from 10° to 30° for optimal load handling.
- Load Capacity: Capable of supporting combined loads, with capacities often reaching up to 300 kN.
- Speed Rating: Designed to operate at speeds of up to 5,000 RPM, depending on the bearing size and application.
- Load Capacity: Handles combined radial and axial loads for heavy-duty applications.
- Precision: Provides accurate alignment, reducing friction and wear in high-performance systems.
- Longevity: Designed for extended service life, even under demanding operating conditions.
- Temperature Range: Operates efficiently in wide temperature ranges, ensuring consistent performance.
- Sealing Options: Available with various seals to protect against contaminants and retain lubrication.
Types
- Single-Row Tapered Roller Bearings: These bearings consist of a single row of tapered rollers arranged in a symmetrical cone shape. They are commonly used in automotive transmissions, axle systems, and industrial gearboxes.
- Double-Row Tapered Roller Bearings: Featuring two rows of tapered rollers, these bearings can support higher radial and axial loads compared to single-row bearings. They are used in heavy-duty applications such as mining equipment, rolling mills, and construction machinery.
Features and Benefits
- High Load Capacity: Tapered roller bearings can support high radial and axial loads due to their tapered roller design, which distributes load evenly across the rollers and raceways.
- Adjustable Clearance: Some tapered roller bearings are designed with adjustable clearance or preload, allowing for precise adjustment to optimize performance and reduce internal friction.
- Efficient at High Speeds: They are capable of operating at high speeds while maintaining stable performance and minimal friction, making them suitable for applications requiring rapid rotation.
- Durability and Longevity: Tapered roller bearings are engineered to withstand heavy loads, shock loads, and frequent starts and stops, providing reliable performance and extended service life.
Applications
- Automotive: Tapered roller bearings are widely used in automotive applications, including wheel hubs, transmissions, and differential gears, where they provide efficient power transmission and support under varying loads.
- Industrial Machinery: They are essential components in industrial equipment such as mining machinery, construction equipment, and agricultural machinery, where they handle heavy loads and harsh operating conditions.
- Railways: Tapered roller bearings are utilized in railway axle boxes and wheel sets to ensure smooth and reliable operation under dynamic loads and varying speeds.
Selection Considerations
- Load Ratings: Consider the expected radial and axial loads in the application and select bearings with adequate load ratings to ensure reliable performance and longevity.
- Speed Capability: Evaluate the operating speed range and select bearings that can maintain stable operation at the desired speeds without excessive heat generation or wear.
- Installation and Maintenance: Follow manufacturer guidelines for proper installation and maintenance procedures, including lubrication intervals and inspection routines, to maximize bearing life and performance.
- Temperature and Environment: Assess environmental factors such as temperature variations and exposure to contaminants to choose bearings with appropriate seals or coatings for enhanced durability and reliability.
